Shandong Yongsheng Dredging Machinery Co., Ltd. yongshengdredger@machineys.com 86--13953662777
उत्पाद का विवरण
Place of Origin: china
ब्रांड नाम: yongsheng
Model Number: csd500
भुगतान और शिपिंग की शर्तें
Minimum Order Quantity: 1
मूल्य: 709000usd/piece
Packaging Details: Container
Delivery Time: 60 work days
Payment Terms: T/T,L/C
Supply Ability: 100piece/Year
Customized: |
customized |
Condition: |
new |
Warranty: |
1 year |
Water Flow: |
3800m3/H |
Solid Capacity: |
760 Cbm/H |
Max.Dredging Depth 45°: |
15m |
Discharge Distance: |
1600m |
Dredger After Assembly: |
47*8.8*2 .5m Length*Width*Depth |
Dredger Structure: |
Can Be Assembly in Working Site |
Average Draught: |
1 .6m |
Diameter Discharge Pipe: |
500mm/20inch |
Total Power: |
1648kw |
Main Engine: |
1193 Kw |
Auxiliary Engine Power: |
425kw |
Generator: |
30kw |
Hydraulic Cutter Powerr: |
220kw |
Customized: |
customized |
Condition: |
new |
Warranty: |
1 year |
Water Flow: |
3800m3/H |
Solid Capacity: |
760 Cbm/H |
Max.Dredging Depth 45°: |
15m |
Discharge Distance: |
1600m |
Dredger After Assembly: |
47*8.8*2 .5m Length*Width*Depth |
Dredger Structure: |
Can Be Assembly in Working Site |
Average Draught: |
1 .6m |
Diameter Discharge Pipe: |
500mm/20inch |
Total Power: |
1648kw |
Main Engine: |
1193 Kw |
Auxiliary Engine Power: |
425kw |
Generator: |
30kw |
Hydraulic Cutter Powerr: |
220kw |
| Attribute | Value |
|---|---|
| Customized | Customized |
| Condition | New |
| Warranty | 1 year |
| Water Flow | 3800m3/H |
| Solid Capacity | 760 Cbm/H |
| Max. Dredging Depth 45° | 15m |
| Discharge Distance | 1600m |
| Dredger After Assembly | 47*8.8*2.5m (Length*Width*Depth) |
| Dredger Structure | Can Be Assembled in Working Site |
| Average Draught | 1.6m |
| Diameter Discharge Pipe | 500mm/20inch |
| Total Power | 1648kw |
| Main Engine | 1193 Kw |
| Auxiliary Engine Power | 425kw |
| Generator | 30kw |
| Hydraulic Cutter Power | 220kw |

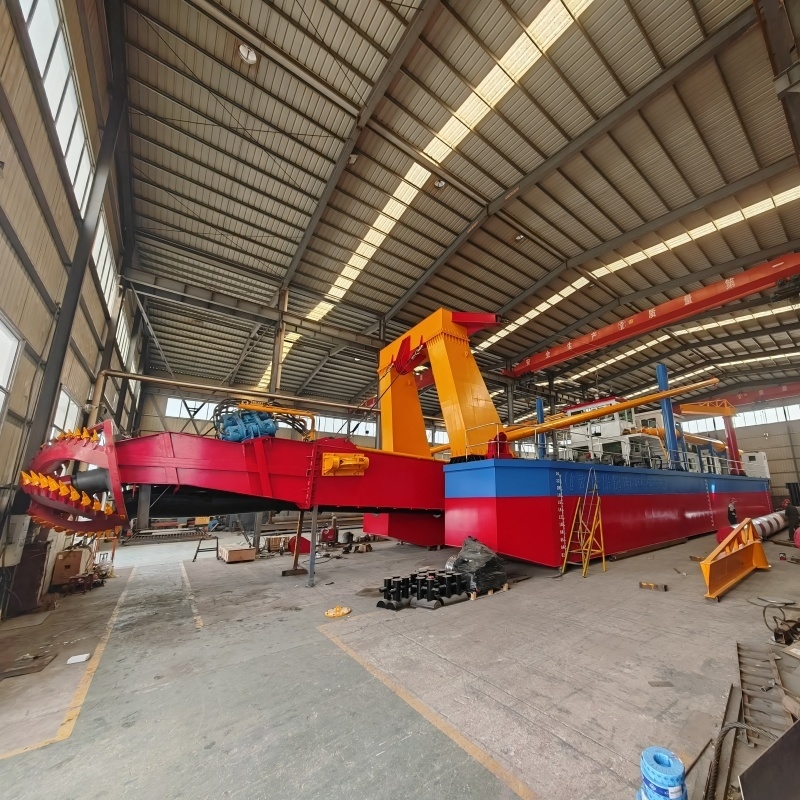

The 20 Inch Water Flow 3800m3/h Sand Suction Dredger is a high-performance machine designed for channel cleaning and mining operations. This cutter suction dredger is equipped with a rotating cutter device at the front end of the suction pipe to effectively cut and agitate river bottom sediment. The system completes mud suction, transport, and unloading processes continuously in one operation.
With its split structure design, this dredger offers simplified installation and transportation, allowing it to be easily deployed to any location. The robust construction ensures low maintenance requirements, excellent fuel efficiency, and high productivity levels, making it the preferred choice in its class.
| Model | Inch | Diameter Pipe | Water Flow | Solid Capacity | Total Power | Dredging Depth | Discharge Distance |
|---|---|---|---|---|---|---|---|
| YSCSD150 | 6 Inch | 150 mm | 260 m3/h | 30 cbm/h | 102 KW | 4m | 600 m |
| YSCSD200 | 8 Inch | 200 mm | 600 m3/h | 80 cbm/h | 213 KW | 6m | 800 m |
| YSCSD250 | 10 inch | 250 mm | 1,000 m3/h | 160 cbm/h | 367 KW | 8m | 1,100 m |
| YSCSD300 | 12 inch | 300 mm | 1,500 m3/h | 240 cbm/h | 591 KW | 10 m | 1,100 m |
| YSCSD350 | 14 inch | 350 mm | 2,400 m3/h | 360 cbm/h | 971 KW | 12m | 1,200 m |
| YSCSD400 | 16 Inch | 400 mm | 3,000 m3/h | 500 cbm/h | 1,057 KW | 14m | 1,400 m |
| YSCSD450 | 18 Inch | 450 mm | 3,500 m3/h | 700 cbm/h | 1,462 KW | 15m | 1,500 m |
| YSCSD500 | 20 Inch | 500 mm | 3,800 m3/h | 760 cbm/h | 1,648 KW | 15m | 1,600m |
| YSCSD600 | 24 Inch | 600 mm | 6,000 m3/h | 900 cbm/h | 2,511 KW | 15m | 1,800 m |
| YSCSD650 | 26 Inch | 650 mm | 7,000 m3/h | 1,400 cbm/h | 3,705 KW | Max.18m | 1,800m |
Warranty Information: A one-year warranty is provided for all machines. In case of any quality problems or part damage, we promise to deliver necessary parts by air. For operational issues, our technicians will first provide guidance via phone or video. If unresolved, we will dispatch a dedicated technical team to solve the problem on-site.
Please provide the following details when inquiring:
