उत्पाद का विवरण
Place of Origin: shandong
ब्रांड नाम: yongsheng
Model Number: YSJSD250
भुगतान और शिपिंग की शर्तें
Minimum Order Quantity: 1
Packaging Details: container
Delivery Time: 40days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Capacity: |
150-180m3/h |
Water flow: |
900m3/h |
Dredging depth: |
10m |
Discharge distance: |
800m |
Main engine: |
294KW |
Auxiliary engine: |
88KW |
Fuel consumption: |
60L/H |
Dimension(L*W*H): |
17*5*1.2m |
Capacity: |
150-180m3/h |
Water flow: |
900m3/h |
Dredging depth: |
10m |
Discharge distance: |
800m |
Main engine: |
294KW |
Auxiliary engine: |
88KW |
Fuel consumption: |
60L/H |
Dimension(L*W*H): |
17*5*1.2m |

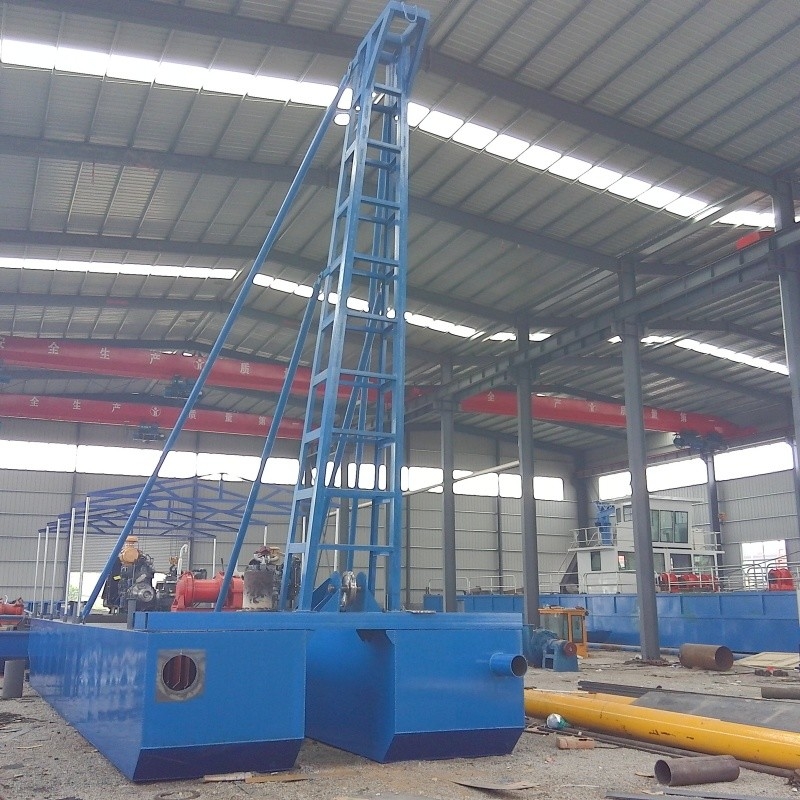

Suction pumping dredger with a dredging depth of 10 meters is used for river dredging
Product description
The jet suction sand pumping vessel is a dredging equipment that uses high-pressure water flow to flush the silt and
pumps the silt to a designated location through negative pressure suction. It combines hydraulic flushing and suction
technology and is suitable for sand mining and dredging operations in shallow waters, rivers, lakes and other environments.
product parameters
|
Model |
Capacity |
Water flow |
Dredging depth |
Discharge distance |
Main engine |
Auxiliary engine |
Fuel consumption |
Dimension(L*W*H) |
|
YSJSD150 |
40-50m3/h |
250m3/h |
6m |
500m |
120KW |
/ |
18L/H |
10*3.8*1 |
|
YSJSD200 |
80-100m3/h |
500m3/h |
8m |
500m |
176KW |
60KW |
40L/H |
14*4.5*1.2m |
|
YSJSD250 |
150-180m3/h |
900m3/h |
10m |
800m |
294KW |
88KW |
60L/H |
17*5*1.2m |
|
YSJSD300 |
200-250m3/h |
1400m3/h |
10m |
1000m |
456KW |
110KW |
80L/H |
20*6*1.5m |
|
YSJSD350 |
300-400m3/h |
2000m3/h |
12m |
1500m |
735KW |
220KW |
120L/H |
24*6.6*1.6m |
|
YSJSD400 |
400-500m3/h |
2600m3/h |
14m |
1500m |
882KW |
330KW |
150L/H |
24*7.2*1.8m |
|
YSJSD450 |
500-600m3/h |
3000m3/h |
14m |
1500m |
1103KW |
406KW |
200L/H |
26*7.6*2m |
|
YSJSD500 |
600-700m3/h |
3800m3/h |
14m |
1500m |
1250KW |
456KW |
240L/H |
26*7.6*2m |
The above technical parameters are for reference only,specific device configuration depends on the conditions of each
project,customer and technical requirements.
Working Principle
The core working principle of the suction sand pumping vessel includes two key steps:
(1) High-pressure jet flushing
The vessel is equipped with a high-pressure water pump, which sprays high-speed water through the nozzle to impact the silt on
the riverbed or seabed, loosening it and suspending it in the water.
This flushing method is more efficient than pure mechanical excavation and is particularly suitable for soft silt layers.
(2) Negative pressure suction
Using a centrifugal pump or mud pump to generate negative pressure, the suspended silt is mixed with water into mud,and then
sucked into the cabin or transported to the shore through the sand pumping pipe.
Some equipment is also equipped with silt separation devices (such as vibrating screens and cyclones) to improve the purity of the
sand.
Application
River/port dredging: remove silt to ensure smooth waterways
Reservoir desilting: prevent siltation and extend the life of reservoirs
Sand mining: mining of sand for construction
Land reclamation: land reclamation by filling, such as coastal development zone construction
